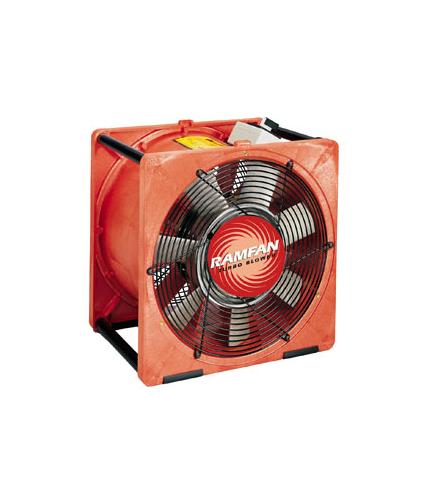

Ram Fan EG8000X Electric Smoke Ejector with Intrinsically Safe M
Electric Smoke Ejector with Intrinsically Safe Motor
Ask a question about this product
EG8000X
- 1.5 HP Intrinsically Safe motor available in 115V or 230V
- Non-sparking Lexan® polycarbonate housing
- Built-in stacking for PPV
- 7-blade cast aluminum, precision balanced impeller
- Lightweight, compact design stacks easily
- Plug sold separately
- Door bar and hanger available for suspending in doorways and windows
| Free Airflow: | 4,459 cfm / 7,580.3 m3/hr |
| 15ft 1-90� turn: | 3,179 cfm / 5,404.3 m3/hr |
| Product Weight: | 55lbs / 25kg |
| Dimensions: | 19h/18w/12d in 483 x 457 x 305 mm |
| Noise: | 95dB |
| Electric: | 115/230VAC, 1�, 115V-12A/230V-8A |
| Motor Certification: | UL Class I - Group D UL Class II - Group E,F,G |
